'How to give shadow on the inside of a clip-path
I'm trying to give shadow on the inside of the hexagon that I created through clip-path. (More like an inset of box-shadow)
I'm using a clip-path to make a hexagon, so I can't use box-shadow to create a shadow on it because any shadow I apply to it will be clipped too.
For that, I'm using a drop-shadow on the parent element to have the shadow on the hexagon. But the thing is I want those shadows to be inset. Like on the inside of the hexagon.
So, my question is, Is there any way to give inset on drop-shadow? If not then what would be the appropriate way to achieve this.
JSfiddle: https://jsfiddle.net/61xwqh4L/4/

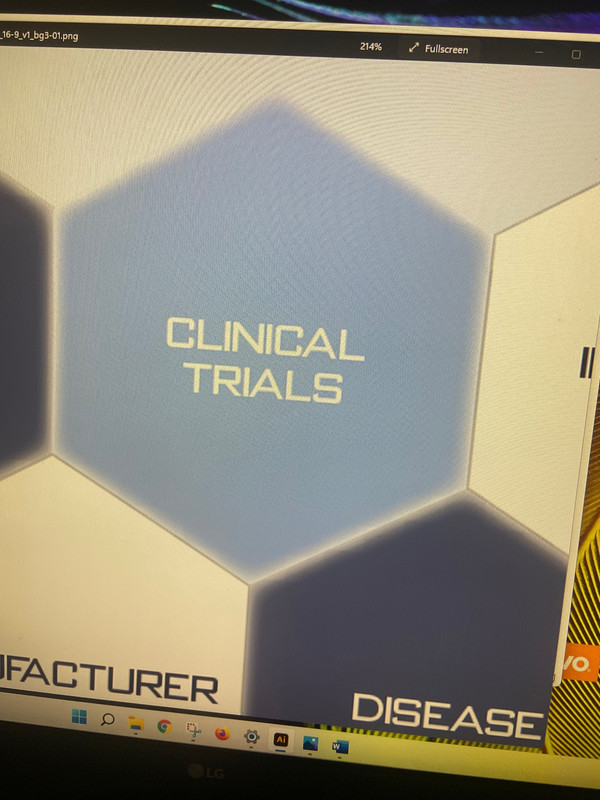

I want the shadow to be like: https://i.postimg.cc/k4vQmLmf/Microsoft-Teams-image.jpg
.home {
width: 100%;
height: 85vh;
background-color: rgb(123, 158, 158);
}
.hex-container {
height: 100%;
max-height: 100vh;
max-width: 60%;
margin: 0px auto;
aspect-ratio: 6 / 2;
display: grid;
grid-template-columns: repeat(6, auto);
grid-template-rows: repeat(2, auto);
filter: drop-shadow(0px 0px 10px rgba(247, 247, 247, 0.9));
justify-content: center;
grid-gap: 2px;
}
.hexagon {
z-index: 0;
max-width: 100%;
max-height: 100%;
aspect-ratio: 1 / 1;
clip-path: polygon(50% 0%, 100% 25%, 100% 75%, 50% 100%, 0% 75%, 0% 25%);
transition: .5s;
position: relative;
}
.hex-text {
position: absolute;
top: 50%;
left: 50%;
transform: translate(-50%, -50%);
text-transform: uppercase;
font-family: 'Roboto', sans-serif;
font-size: 20px;
text-align: center;
width: 100%;
}
.hexagon:first-child {
grid-row-start: 1;
grid-column: 1 / span 2;
background-color: #003366;
color: #fff;
animation: 1s ease-out 0s 1 slideInFromLeft;
}
.hexagon:nth-child(2) {
grid-row-start: 1;
grid-column: 3 / span 2;
background-color: #87cefa;
color: #fff;
animation: 1s ease-out 0s 1 slideInFromTop;
}
.hexagon:nth-child(3) {
grid-row-start: 1;
grid-column: 5 / span 2;
background-color: #f5f5f5;
color: #003366;
animation: 1s ease-out 0s 1 slideInFromRight;
}
.hexagon:nth-child(4) {
grid-row-start: 2;
grid-column: 2 / span 2;
background-color: #f5f5f5;
color: #003366;
position: relative;
top: -25%;
animation: 2s ease-out 0s 1 slideInFromLeft;
}
.hexagon:nth-child(5) {
grid-row-start: 2;
grid-column: 4 / span 2;
background-color: #003366;
color: #fff;
position: relative;
top: -25%;
animation: 2s ease-out 0s 1 slideInFromRight;
}
<div class="home">
<div class="hex-container">
<a href="#" onclick="return false;" class="hexagon">
<div class="hex-text">
<p>Drug Names</p>
</div>
</a>
<a href="#" onclick="return false;" class="hexagon">
<div class="hex-text">
<p>Clinical Trials</p>
</div>
</a>
<a href="#" onclick="return false;" class="hexagon">
<div class="hex-text">
<p>Indication Group</p>
</div>
</a>
<a href="pages/ManufacturerMap/index.html" class="hexagon">
<div class="hex-text">
<p>Manufacturer Map</p>
</div>
</a>
<a href="#" onclick="return false;" class="hexagon">
<div class="hex-text">
<p>Disease Name</p>
</div>
</a>
</div>
</div>
Please any help would be appreciated.
